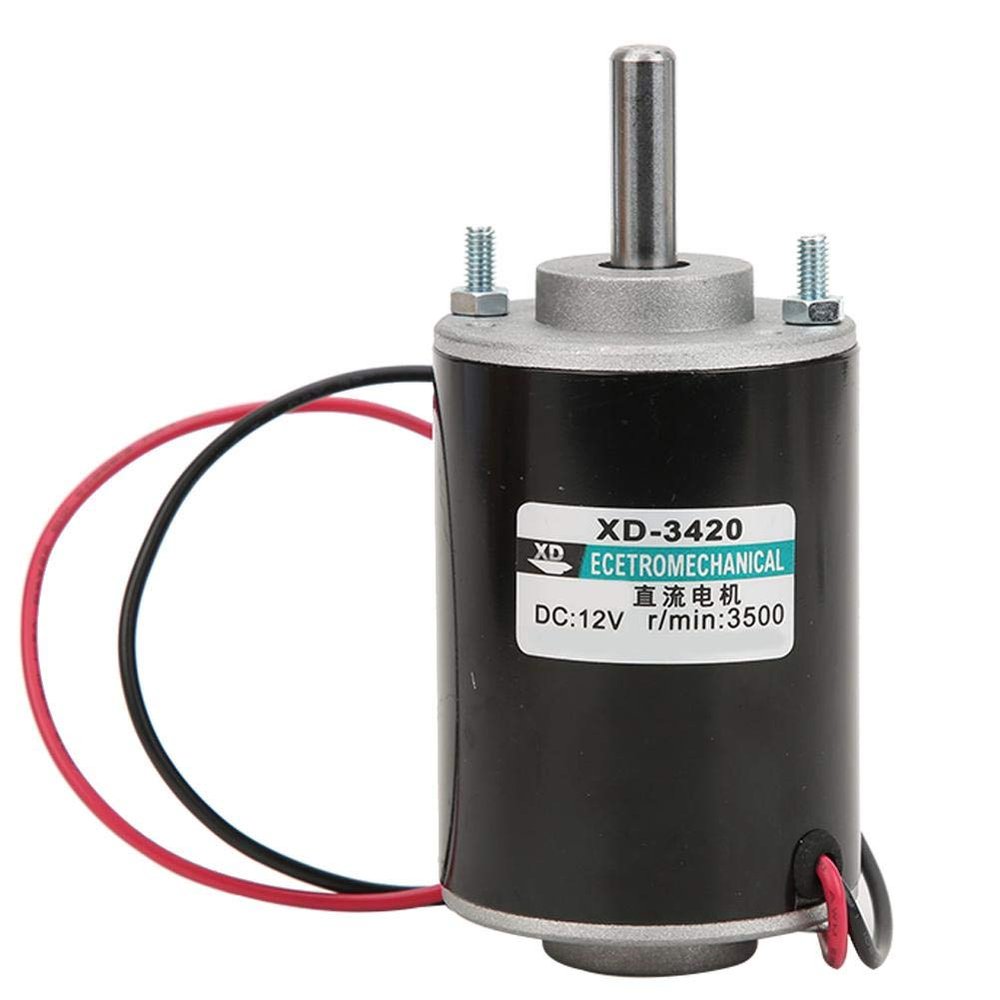

DC Permanent Magnet High Speed Motor,XD-3420 12/24V 30W CW/CCW Large Torque for Small Cutting Bench Grinding Machine Medical Equipment and Other Mechanical Equipment(12V3000rpm)

Description

• ADVANTAGES -Ball bearings, low friction, strong oil seal, high load capacity.
• STABLE -It drives extremely smoothly, almost noiselessly, safe to use.
• 3000 / 6000rpm -With high speed 3000 / 6000rpm for your choice and big torque.
• HIGH QUALITY -The stator windings of the motor are made of copper wire, are heat and loss-, have a long service life and are controlled clockwise or counterclockwise.
• FUNCTION -If you need an external DC current regulator, it can achieve a speed adjustment function.

Descriptions:
This DC electric motor drives super smooth, almost no noise, safe to use.With high speed 3000/6000rpm for your choice and large torque. Widely used in cotton candy machine, small cutting bench, grinding machine, medical equipment and other mechanical equipment.
Features:
It drives super smooth, almost no noise, safe to use. With high speed 3000/6000rpm for your choice and large torque. The stator windings of the motor are copper wire, low heat, low loss, long life, and it can realize CW/CCW by switch control (switch not included) . Need for external direct current governor, it can achieve speed adjustment function. Widely used in cotton candy machine, small cutting bench, grinding machine, medical equipment and other mechanical equipment. Ball bearing, small friction, strong oil seal, high bearing capacity

Specifications:
Product type: brush DC motor
Model: XD-3420
Rated power: 30W
Rated voltage(Optional): 12V, 24 V
Rated speed: 3000RPM(12V),6000 RPM(24V)
Current: 0.5 A
Output Shaft Length: 26mm/1.02inch
Torque:1kgf.cm(12V), 2kgf.cm(24v)
Weight:460g

Package Included:
1 x DC Electric Motor

Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
